M3115 motor

  • M3115 motor

M3115 motor

Phone ：+86 166 7815 1397
WhatsApp ：+86 166 7815 1397
Email ：roger@sino-group.com
Message
shopping cart

◉ Product Parameters

rating of machine
modelM3115-900KVMotor weight113g
Motor size37.1 × 52.5 mmAxle diameter of the propeller adapterφ5
Propeller mounting holeM5Motor installation holeφ194 - M3
configure12N14Prated voltage24V
rated current10AMaximum continuous current59A/10S
continuous maximum rating1410W/6SNo-load current1.45A/10V
electric efficiency (%)90%Lipo cell4S-6SLipo
Electrical cable length200 millimeterswaterproof and dustproofIP67
Electronic Speed Controller6S 60Ascrew propeller1045-3R

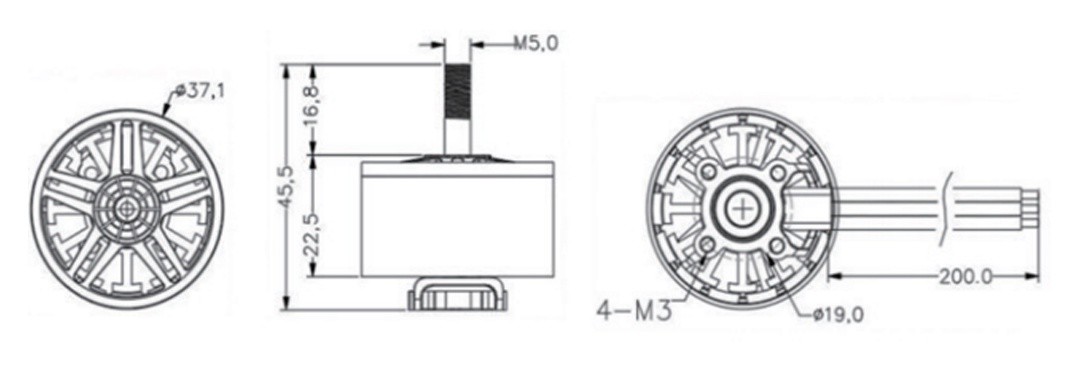

M31XX-motor2


◉ Exploded view of drone

无人机分解图
