M4214 motor

  • M4214 motor

M4214 motor

Phone ：+86 166 7815 1397
WhatsApp ：+86 166 7815 1397
Email ：roger@sino-group.com
Message
shopping cart

◉ Product Parameters

rating of machine
modelM4214-400KVMotor weight195g
Motor size51.2×49 mmAxle diameter of the propeller adapterφ5
Propeller mounting holeM6Motor installation holeφ304- M4
configure12N14Prated voltage8S
rated current18AMaximum continuous current41A/30S
continuous maximum rating1312W/8SNo-load current1.45A/10V
electric efficiency (%)90%Lipo cell6S-12SLipo
Electrical cable length200 millimeterswaterproof and dustproofIP67
Electronic Speed Controller8S 50Ascrew propeller1308

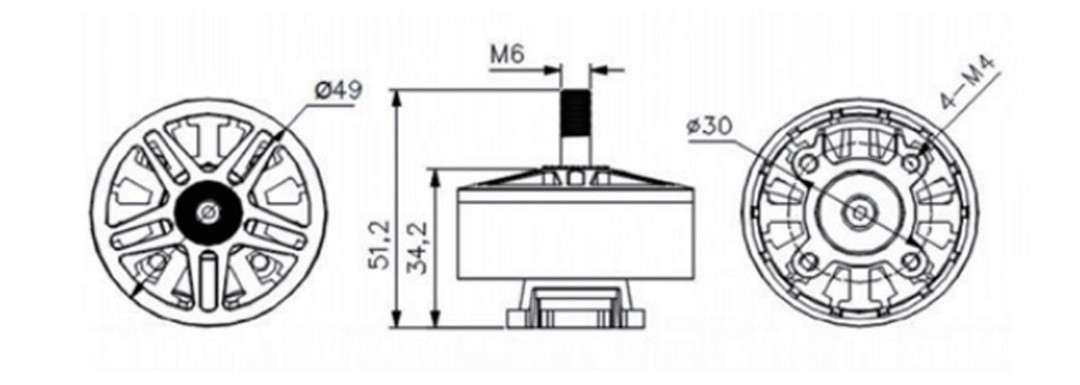

M42XX-motor2


◉ Exploded view of drone

无人机分解图
