L440 Agricultural Drone

  • L440 Agricultural Drone

L440 Agricultural Drone

Phone ：+86 166 7815 1397
WhatsApp ：+86 166 7815 1397
Email ：roger@sino-group.com
Message
shopping cart

◉ Product Parameters

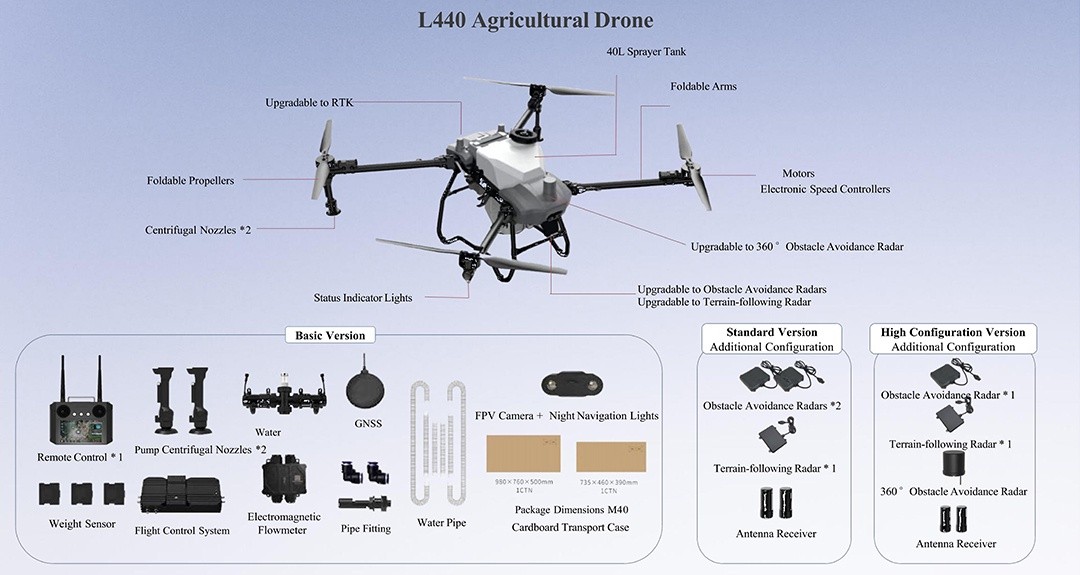

植保详情图07

L440

1. Aerial Platform

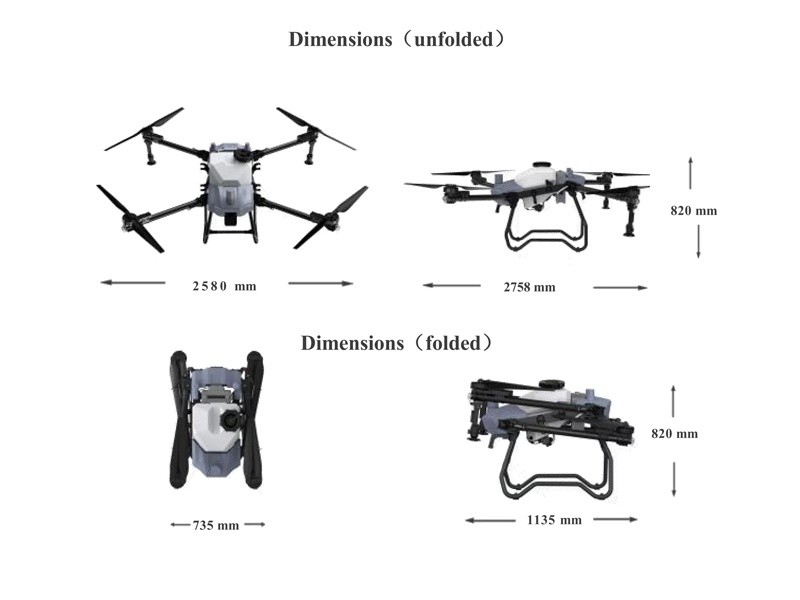

Dimensions (folded)1135*735*820 mm
Dimensions (unfolded)2580*2758*820 mm
Weight (excluding battery)30 kg
Weight (including battery)45 kg
Waterproof GradeIP67
2. Flight Parameters
Max. Take-off Weight85 kg
Max. Flight Speed15 m/s
Max. Flight Altitude≤ 20 m
Hovering Duration (No-load)28 mins (with no-load)
Hovering Duration (Full-load)7.5 mins (with full-load)
3. Spraying System
Liquid TankCapacity40 L
NozzlesNozzle TypeCentrifugal Nozzles
Quantity2
Spray Width8~20 m
Atomizing Size30~400 μm
PumpQuantity2
Max. System Flow Rate20 L / min
4. Spreading System
Capacity56 L
Waterproof GradeIP67
5. Propulsion System
MotorMax. Tension (single motor)44.6 kg
Foldable PropellerModel5620
Electronic Speed ControllerMax. Continuous Operating Current120 A
Max. Operating Voltage (14S Lipo)60.9 V
6. Obstacle Avoidance System
Front and Rear Obstacle Avoidance RadarQuantity2
Relative Height of Safe Obstacle Avoidance≥ 2 m
Relative Speed of Safe Obstacle Avoidance≤ 8 m/s
Terrain-following RadarQuantity1
Max. Gradient (at flight speed of ≤ 2 m/s)45°
360° Obstacle Avoidance RadarQuantity1
Obstacle Avoidance Angle (upward)360°
7. Camera
Camera TypeHD FPV Camera
Video Resolution1920*1080 px
Night NavigationHigh Brightness Night Flight Lights
8. Remote Control
ModelH12 (Android OS)
Remote Controller5.5-inch Screen, 1920×1080, 1,000cd/㎡
Max. Signal Range (no interference / obstruction)5 km
Operating Frequency2,400~2,483 Ghz
Dimensions190*152*94 mm
Charging portTYPE-C
Duration6~20 H
Compatible DeviceH32X, H40X, H120, H160, Series M
9. Power System
Intelligent BatteryQuantity1
Model18S 30000mAh
Size275*120*330 mm
Weight15 kg
Ambient Temperature for Charging10~45℃
Smart ChargerQuantity1
ModelL6025P
Charging Input110V-240V 1200W*2
Charging Output55A (single-channel charging)
Rated Power9000W


◉ Exploded view of drone

无人机分解图

◉ Factory show

  • factory01
  • factory02
  • factory03
  • factory04
  • factory05
  • factory06
  • factory07
  • factory08
