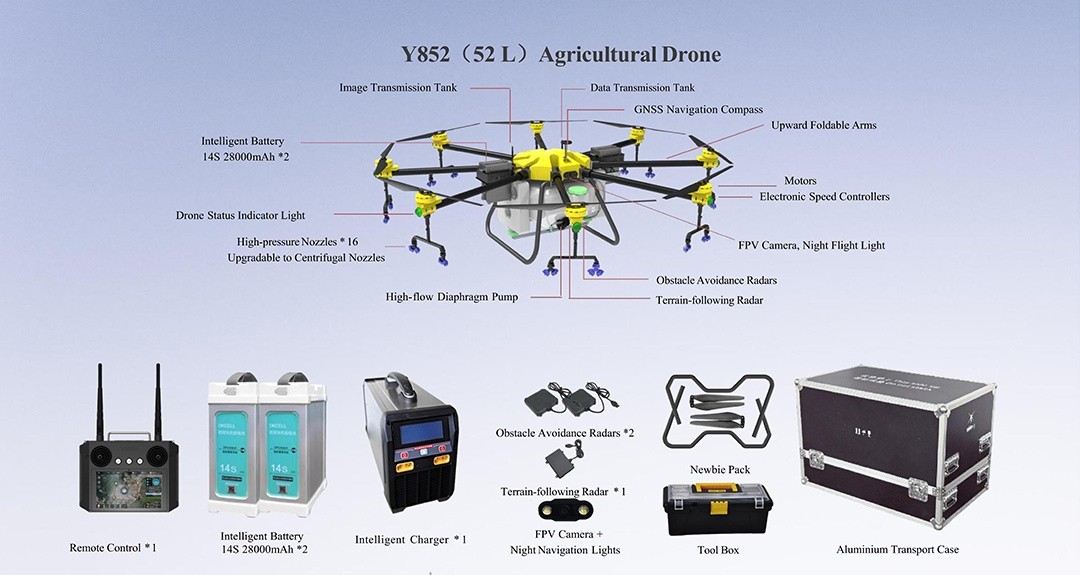

Y852（52L）Agricultural Drone

shopping cart

◉ Product Parameters

2.Flight Parameters
Max. Take-off Weight	113 kg
Max. Flight Speed	15 m/s
Max. Flight Altitude	≤20 m
Hovering Duration	15 mins (with no-load)5 mins (with full-load)

5.Propulsion System
Motor	Max. Tension (single motor)	29 kg
Foldable Propeller	Model	36 120
Electronic Speed Controller	Max. Continuous Operating Current	120 A
	Max. Operating Voltage (14S Lipo)	60.9 V

6.ObstacleAvoidance System
Front and Rear Obstacle Avoidance Radar	Quantity	2
	Relative Height of Safe Obstacle Avoidance	≥ 2 m
	Relative Speed of Safe Obstacle Avoidance	≤ 8 m/s
Terrain-following Radar	Quantity	1
Terrain-following Radar	Max. Gradient (at flight speed of ≤ 2 m/s)	45°

7.Camera
Camera Type	HD FPV Camera
Video Resolution	1920*1080 px
Night Navigation	High Brightness Night Flight Lights

8.Remote Control
Model	H12 (Android OS)
Remote Controller	5.5-inch Screen, 1920×1080, 1,000cd/IV
Max. Signal Range (no interference / obstruction)	5 km
Operating Frequency	2,400~2,483 GHz
Dimensions	19015294 mm
Charging port	TYPE-C
Duration	6~20 H
Compatible Device	H32X, H40X, H120, H160, Series M

9.Power System
Intelligent Battery	Quantity	1 Pair (2 units)
	Model	14S 28000mAh, *2
	Rated Capacity	60.9V / 40A / 2400W
	Size	175110290 mm
	Weight	8.6 kg
	Ambient Temperature for Charging	10~45°C
Smart Charger	Quantity	1
	Model	L6025P
	Charging Input	110V-240V 1200W*2
	Charging Output	55A (single-channel charging)
	Rated Power	3000W

◉ Exploded view of drone

◉ Factory show
