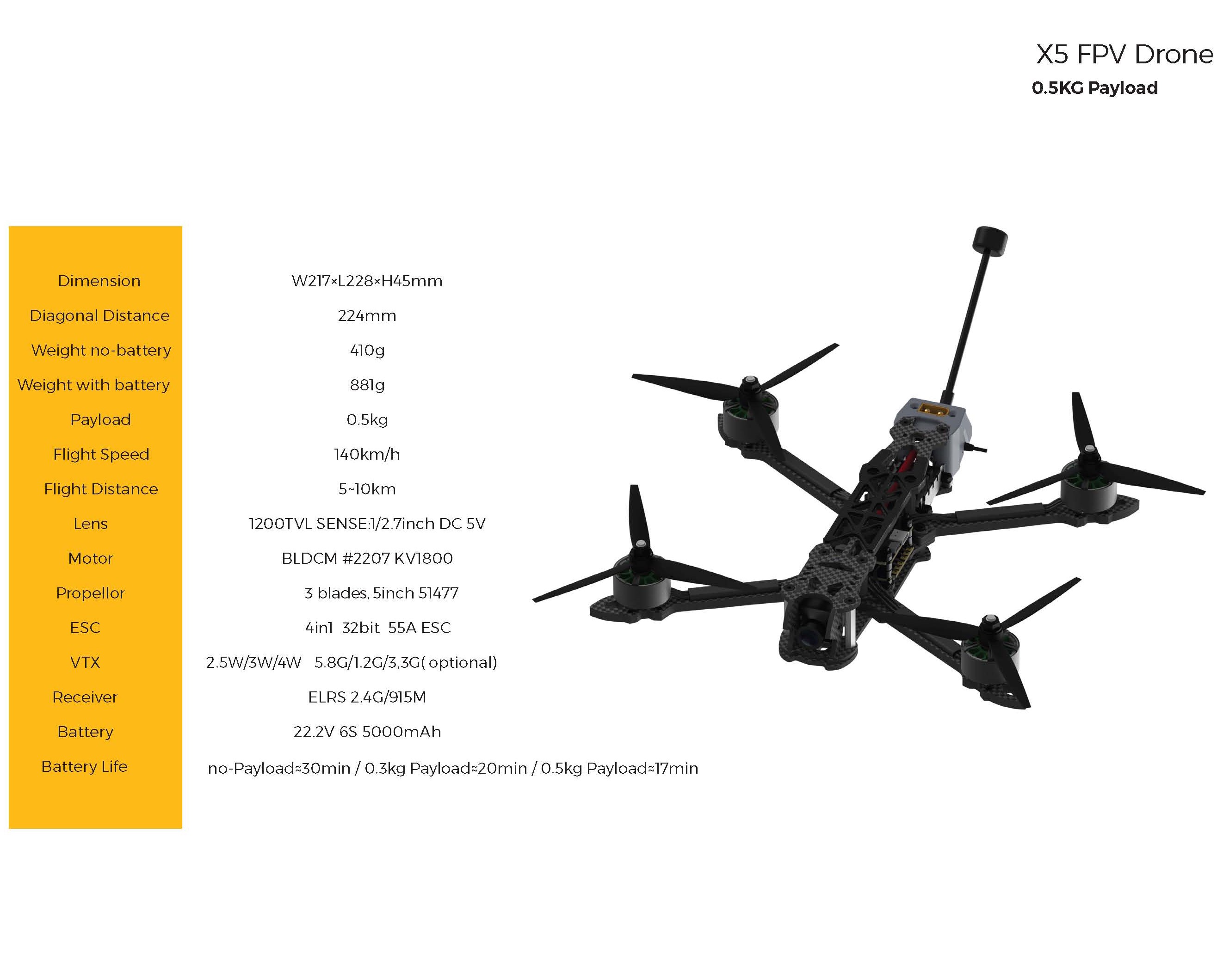

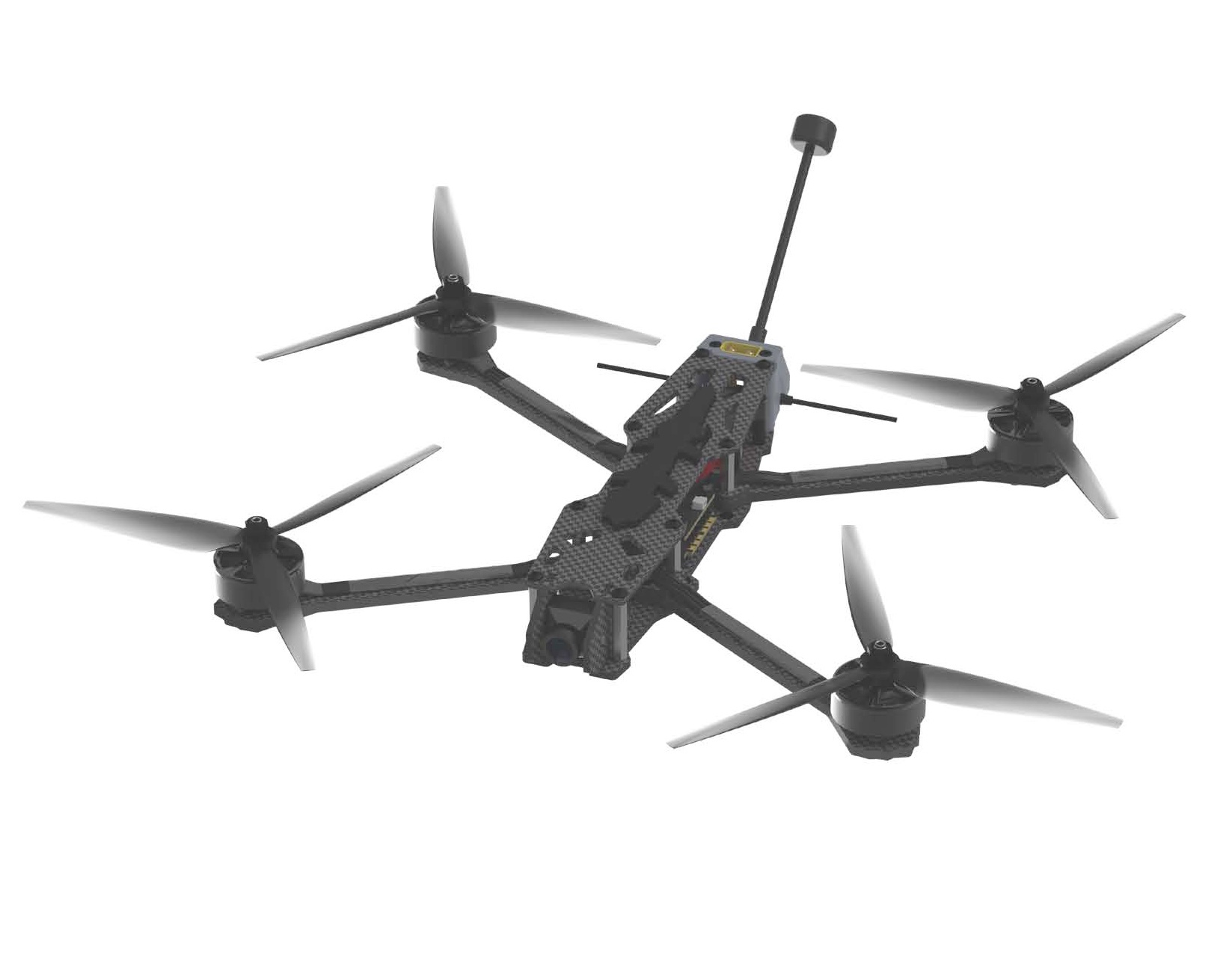

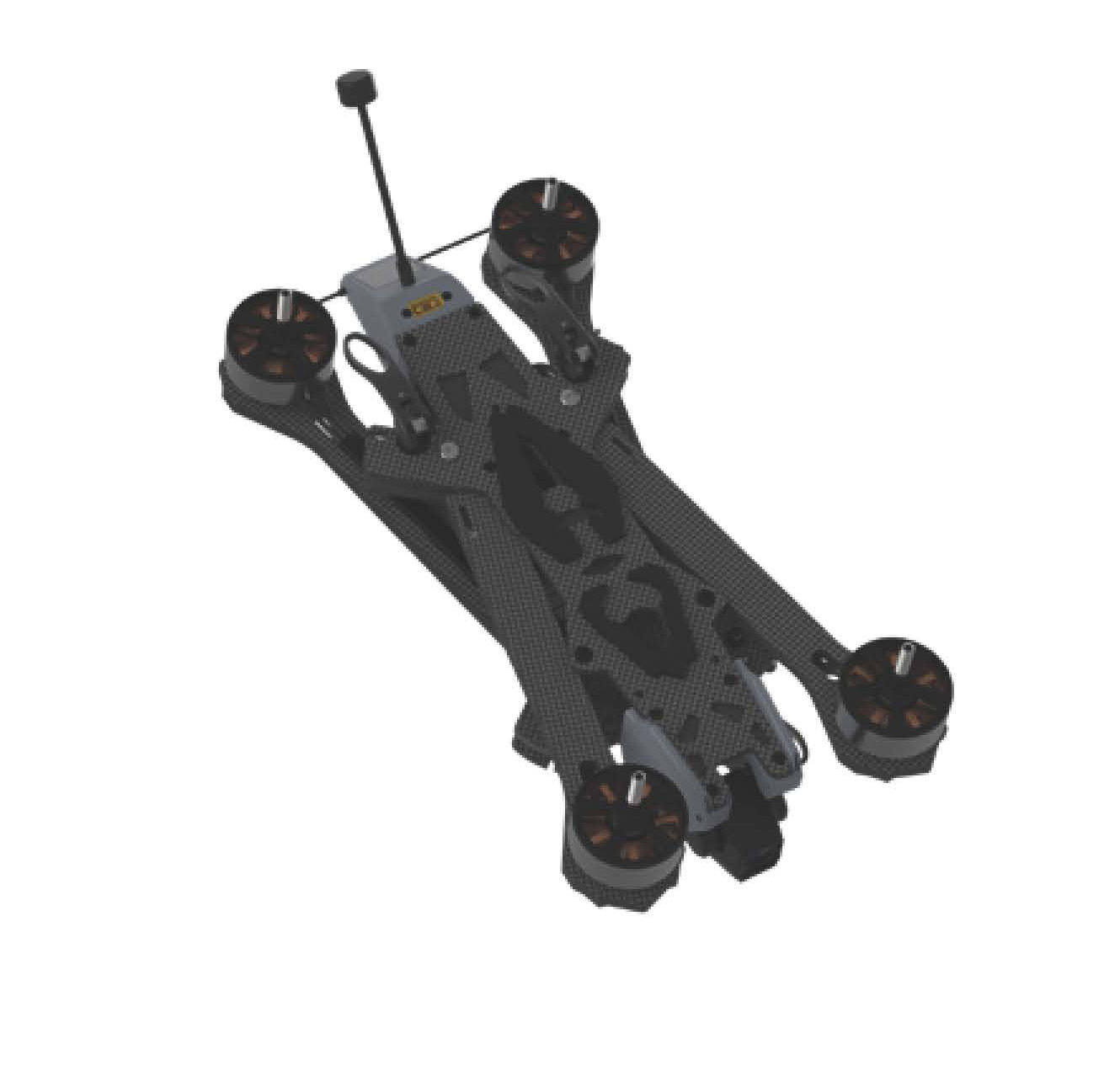

5 inch FPV Drone

shopping cart

◉ Product Parameters

FPV Drone Full Series Cross-Size Configuration
Parameter / Model	ZTK-5	ZTK-7	ZTK-10	ZTK-13	ZTK-15	ZTK-18A
Frame Size	5 inches	7 inch Mark4	10 inch Frame Mark4 V2	13 inch Frame Mark4	15 inch Frame Mark4	18 inch Rack
Frame Type	-	X Type	X Type	X Type	X Type	X Type
Flight Controller	F405 V3	F405 V3	F405 V3	F405 V3	F405 V3	F405 V3
ESC	4-in-1 55A	55A ESC 4IN1 6S	65A ESC 4IN1 6S	90A ESC 4IN1 8S	110A ESC 4IN1 8S	160A ESC *4 Independent
VTX	5.8G 2W	5.8G 3W (Optional)	5.8G 3W	5.8G 3W (Optional)	5.8G 3W (Optional)	5.8G 3W (Optional)
Camera	Mini Camera 1500TVL	1500TVL 165° Wide Angle (Optional)	1200TVL 165° Wide Angle (Optional)	1500TVL 165° Wide Angle (Optional)	1500TVL 165° Wide Angle (Optional)	1500TVL 165° Wide Angle (Optional)
Motors	2207 1960kv	2812 900KV	3115 900KV	4214 400KV	4218 380KV	6210 210KV
Propellers	5136	7040*3	1050*3	1310*3	1510*3	1855
Receiver	ELRS 915/2.4G	ELRS915	ELRS915	ELRS915	ELRS915	ELRS915
Antenna	RHCP SMA 5.8G	5.8G 151mm 3.5dBi	5.8G 151mm 3.5dBi	5.8G 151mm 3.5dBi	5.8G 151mm 3.5dBi	5.8G 151mm 3.5dBi
Drone Weight	-	-	800g	1980g	2080g	3000g
Maximum Flight Speed	180km/h	160km/h	140km/h	130km/h	130km/h	130km/h
Rated Load	-	1.5KG	3.0KG	6.0KG	8.0KG	12KG
Maximum Load	-	2.0KG	4.0KG	8.0KG	10KG	13KG
Maximum Take-off Weight	-	3.5KG	6.5KG	11.3KG	13.0KG	19KG
Recommended Battery	6S 1500mAh XT60	6S 4500mAh XT60	6S 8500mAh XT60	8S 12000mAh XT90	8S 16000mAh XT90	12S 30000mAh XT90
Flight Time	-	Rated Load: ~7 mins @4500mAh / 12 mins @8500mAh	Rated Load: ~9 mins @8500mAh / 11 mins @10000mAh	Rated Load: ~11 mins @12000mAh	Rated Load: ~12 mins @16000mAh	Rated Load: ~12 mins @30000mAh

◉ Exploded view of drone

◉ Factory show

Send Your Inquiry
