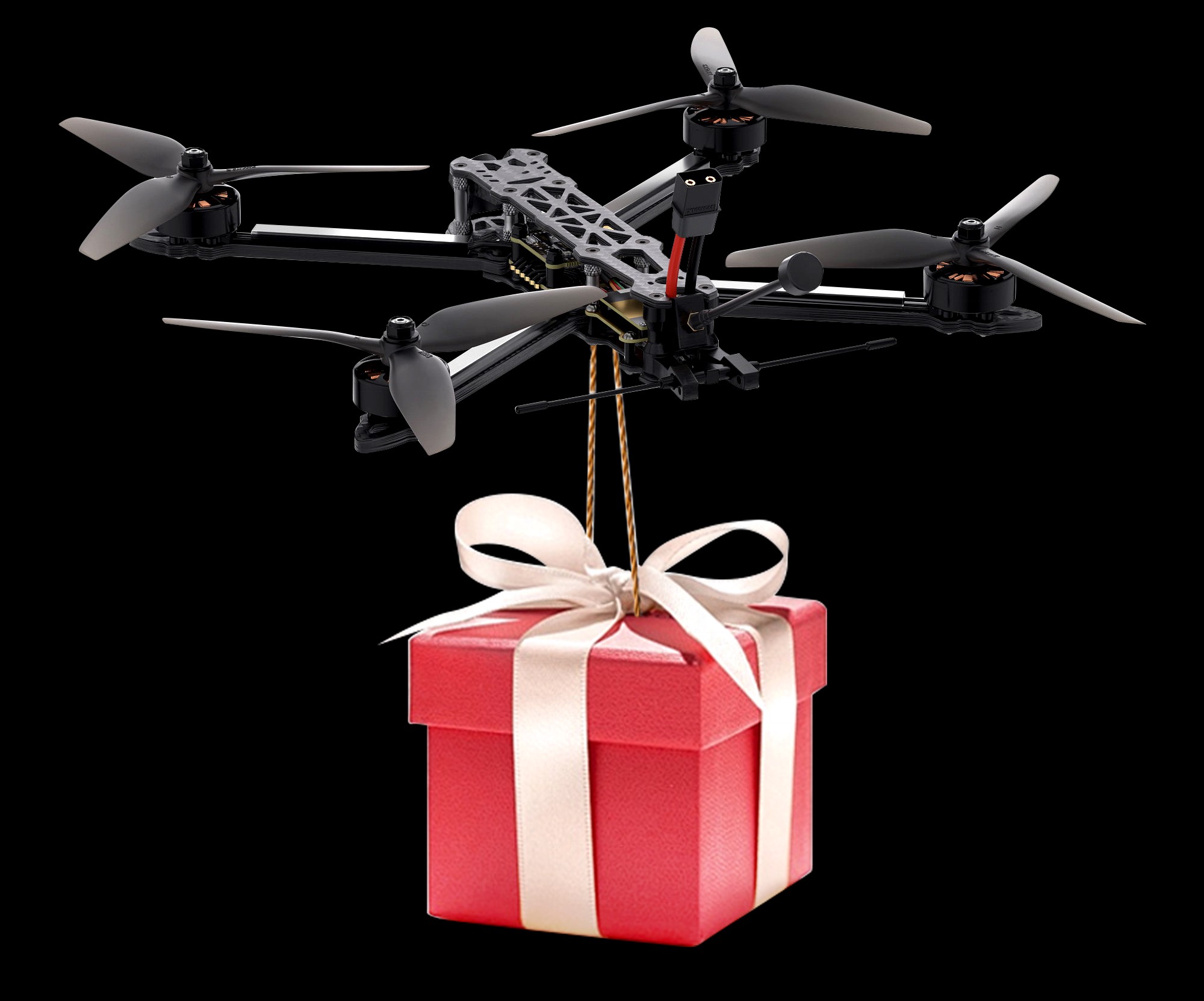

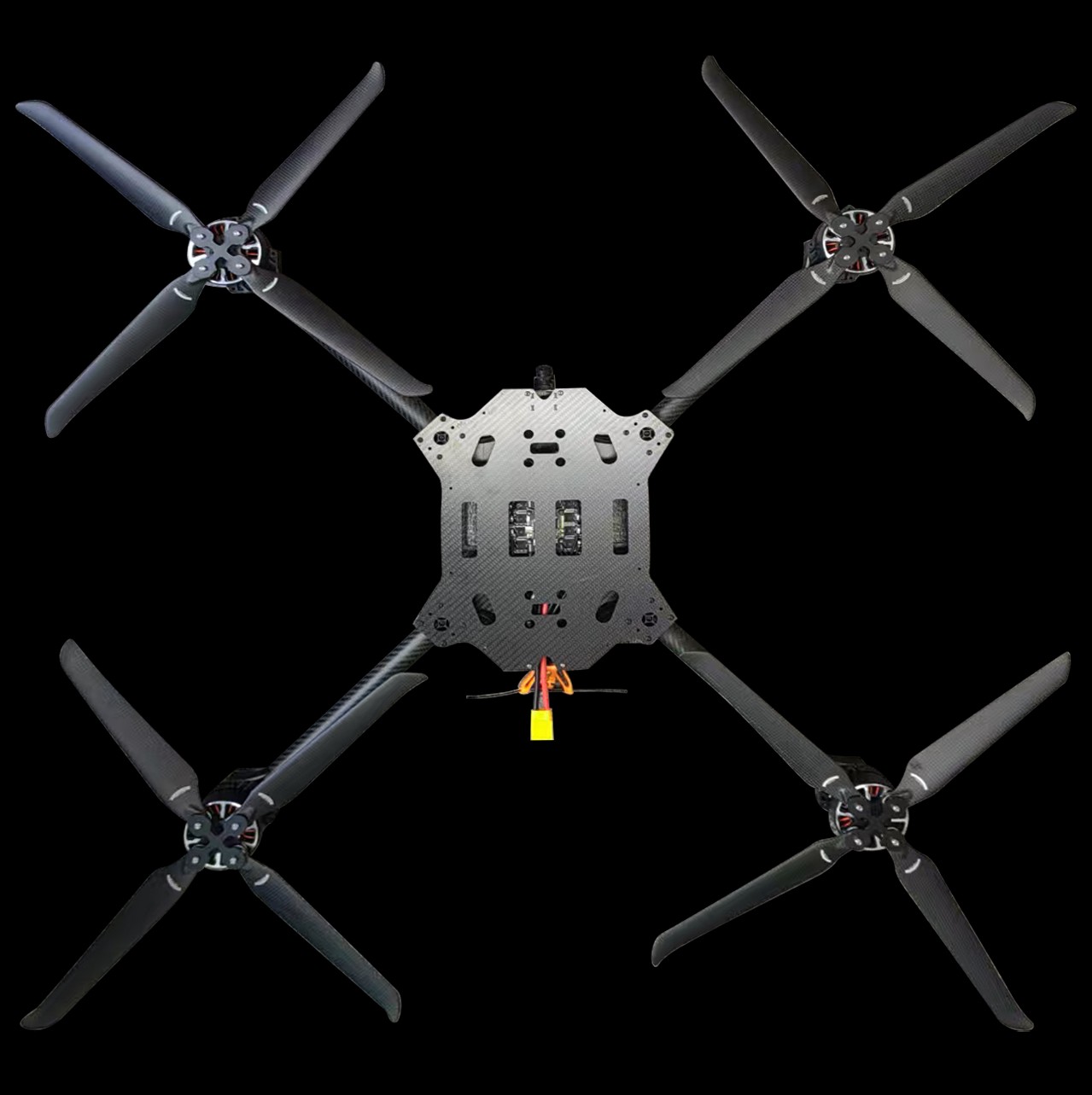

18 inch FPV Drone

Name: 18 inch FPV Drone
SKU: 0

Phone ：+86 166 7815 1397

WhatsApp ：+86 166 7815 1397

Email ：roger@sino-group.com

Message

shopping cart

◉ Product Parameters

Parameter	5 Inch	7 Inch	10 Inch	13 Inch	15 Inch	18 Inch	20 Inch
Diagonal Wheelbase	225mm	295mm	427mm	520mm	580mm	680mm	750mm
Frame Material	Full Carbon Fiber T300	Full Carbon Fiber T300	Full Carbon Fiber T700	Full Carbon Fiber T700 Thickened Arm	Full Carbon Fiber Thickened Plate	Thickened T700 Carbon Plate (10mm Arm)	Heavy-duty Thickened Full Carbon Airframe
Propeller Size	5-inch 3-blade Propeller	7-inch 3-blade Propeller	10-inch 3-blade Propeller	13-inch 3-blade Propeller	15-inch Large Propeller	18-inch Industrial Propeller	20-inch Heavy-duty Propeller
Brushless Motor	2207 KV2300	2812 KV1300	3115 KV700	4114 KV520	4218 KV380	5025 KV280	5530 KV220
4in1 ESC Specification	4in1 55A 4S/6S BLHeli_S	4in1 60A 6S BLHeli_S	4in1 65A 6S BLHeli_S	4in1 80A 8S BLHeli_S	4in1 110A 12S	4in1 120A 12S	4in1 150A 12S Dual-channel
Flight Controller	F405 MK2	F405 MK2	F405 MK2 / F722 Optional	F722 Pro	F722 Pro	F722 High-end Version	F745 Flagship Flight Controller
VTX Transmitter Power	5.8G 2.5W Standard, 3W Optional	5.8G 2.5W / 1.3G 1.6W	2.5W Standard, Upgradable to 5W/10W	5W Standard, Max 10W 1.3G	5W Standard, 10W High-power	10W Long-range VTX Standard	Custom 10W+ Anti-interference VTX
Onboard FPV Camera	1500TVL Standard CMOS	1500TVL Caddx Night Vision	1500TVL Starlight Night Vision	Infrared Thermal Imaging / Starlight Dual Camera	TI Infrared Night Vision + HD	Industrial-grade Night Vision Thermal Imaging	Dual-light Gimbal Camera
Recommended LiPo Battery	6S 1500mAh	6S 5500~6000mAh	6S 8400mAh	8S 12000mAh	12S 16000mAh	12S Dual Parallel 22000mAh	12S Dual Group 30000mAh
Max Payload Capacity	0.8~1.2KG	2.0~2.5KG	3.5~4.2KG	5.5~6.5KG	8~10KG	12~16KG	18~22KG
No-load Flight Endurance	12~16min	25~30min	22~27min	20~25min	18~23min	15~20min	12~18min
Full-load Flight Endurance	6~8min	9~12min	7~10min	6~9min	5~8min	4~7min	3~6min
Max Image Transmission Range	3~5KM	8~10KM	12~15KM	15~20KM	18~22KM	20~25KM	25~30KM
Max Level Flight Speed	140km/h	135km/h	145km/h	130km/h	120km/h	100km/h	85km/h
Remote Control Receiver	ELRS 915MHz	ELRS 915MHz	ELRS 915/2.4G Dual Version	ELRS 915 + TBS Crossfire Optional	Dual-band Receiver	TBS + ELRS Dual Receiver	Custom Long-range Receiver

◉ Exploded view of drone

◉ Factory show

18 inch FPV Drone
