L430 Agricultural Drone

  • L430 Agricultural Drone

L430 Agricultural Drone

Phone ：+86 166 7815 1397
WhatsApp ：+86 166 7815 1397
Email ：roger@sino-group.com
Message
shopping cart

◉ Product Parameters

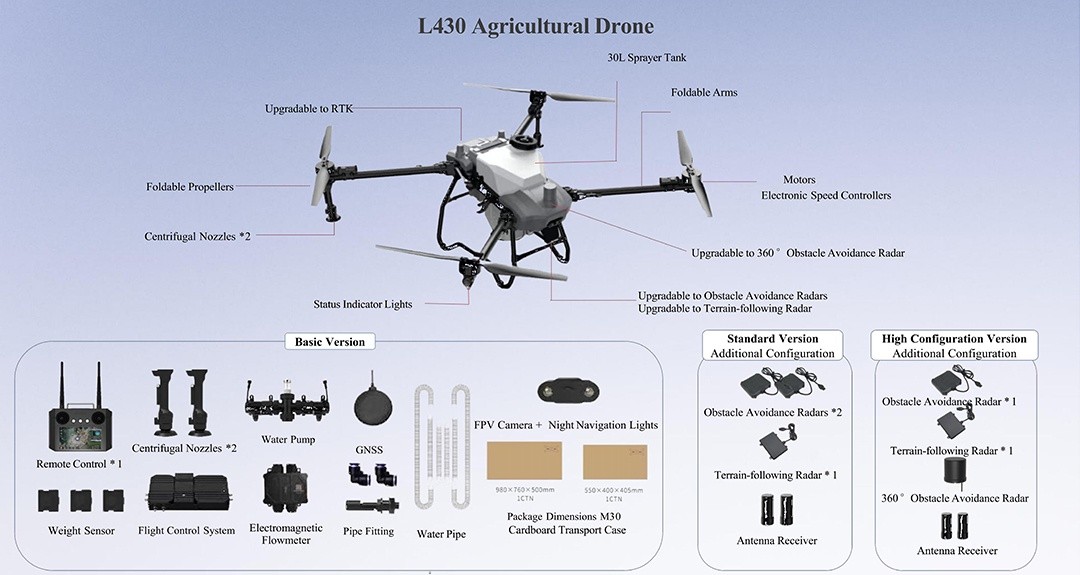

植保详情图08

L430

1. Aerial Platform

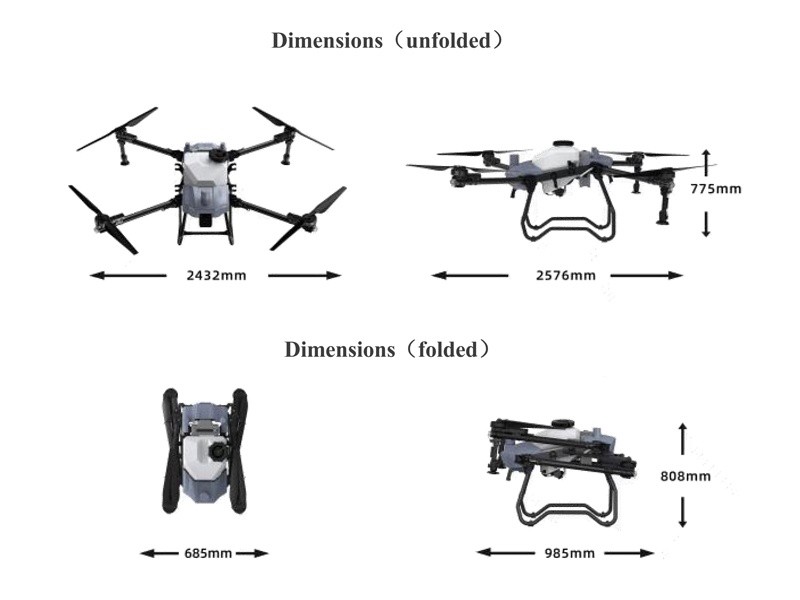

Dimensions (folded)985*685*808 mm
Dimensions (unfolded)2432*2576*775 mm
Weight (excluding battery)28 kg
Weight (including battery)39.1 kg
Waterproof GradeIP67
2. Flight Parameters
Max. Take-off Weight69.1 kg
Max. Flight Speed15 m/s
Max. Flight Altitude≤ 20 m
Hovering Duration (No-load)28 mins (with no-load)
8 mins (with full-load)
3. Spraying System
Liquid TankCapacity30 L
NozzlesNozzle TypeCentrifugal Nozzles
Quantity2
Spray Width8~20 m
Atomizing Size30~90 μm
PumpQuantity2
Max. System Flow Rate20 L / min
4. Spreading System
Capacity42 L
Waterproof GradeIP67
Applicable Granule Size1~10 mm
5. Propulsion System
MotorMax. Tension (single motor)36 kg
Foldable PropellerModel4314
Electronic Speed ControllerMax. Continuous Operating Current120 A
Max. Operating Voltage (14S Lipo)60.9 V
6. Obstacle Avoidance System
Front and Rear Obstacle Avoidance RadarQuantity2
Relative Height of Safe Obstacle Avoidance≥ 2 m
Relative Speed of Safe Obstacle Avoidance≤ 8 m/s
Terrain-following RadarQuantity1
Max. Gradient (at flight speed of ≤ 2 m/s)45°
360° Obstacle Avoidance RadarQuantity1
Obstacle Avoidance Angle (upward)360°
7. Camera
Camera TypeHD FPV Camera
Video Resolution1920*1080 px
Night NavigationHigh Brightness Night Flight Lights
8. Remote Control
ModelH12 (Android OS)
Remote Controller5.5-inch Screen, 1920×1080, 1,000cd/㎡
Max. Signal Range (no interference / obstruction)5 km
Operating Frequency2,400~2,483 Ghz
Dimensions190*152*94 mm
Charging portTYPE-C
Duration6~20 H
Compatible DeviceH32X, H40X, H120, H160, Series M
9. Power System
Intelligent BatteryQuantity1
Model14S 30000mAh
Size245*140*320 mm
Weight11.1 kg
Ambient Temperature for Charging10~45℃
Smart ChargerQuantity1
ModelL6025P
Charging Input110V-240V 1200W*2
Charging Output55A (single-channel charging)
Rated Power7200W


◉ Exploded view of drone

无人机分解图

◉ Factory show

  • factory01
  • factory02
  • factory03
  • factory04
  • factory05
  • factory06
  • factory07
  • factory08
