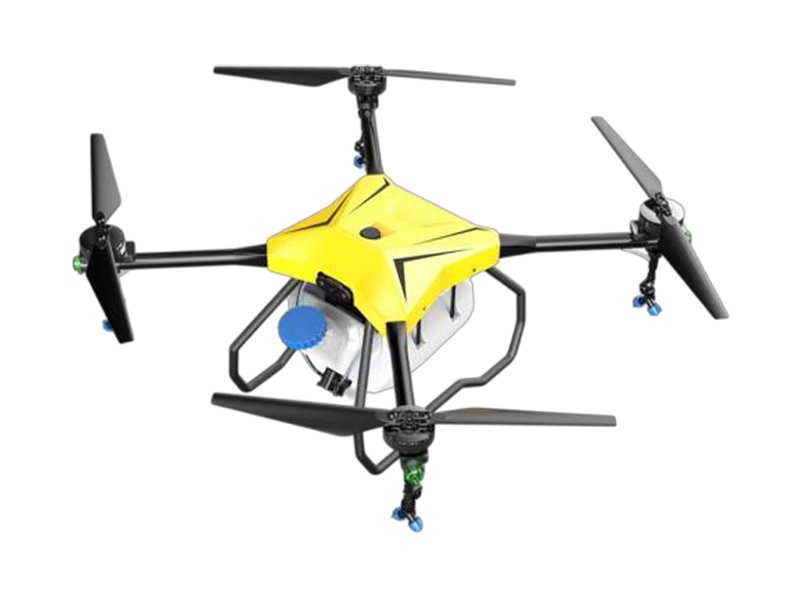

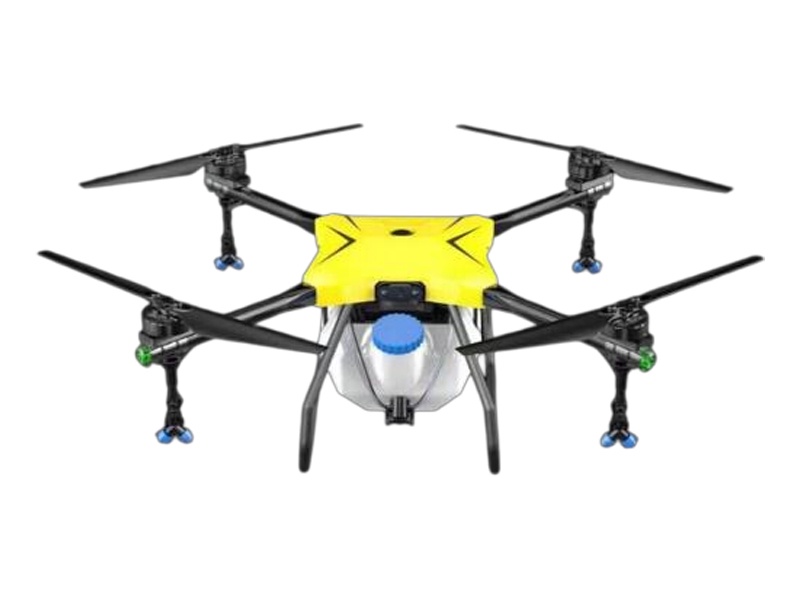

Y430（30L）Agricultural Drone

  • Y430（30L）Agricultural Drone
  • Y430（30L）Agricultural Drone
  • Y430（30L）Agricultural Drone

Y430（30L）Agricultural Drone

Phone ：+86 166 7815 1397
WhatsApp ：+86 166 7815 1397
Email ：roger@sino-group.com
Message
shopping cart

◉ Product Parameters

Aerial Platform
Structural Design4-Axis
Dimensions (folded)830*830*800 mm
Dimensions (unfolded)2150*2150*800 mm
Weight21 kg
Max. Take-off Weight59.6 kg
Max. Liquid Capacity30 L
Waterproof GradeIP67
Battery14S 28000mAh Intelligent Battery * 1
Charger30000W Intelligent Charger * 1
Aircraft Engine Lifespan≥ 100,000 hours
Aircraft Frame Lifespan≥ 10 years
Flight Parameters
Max. Flight Altitude≤ 20 m
Max. Flight Radium5 km
Flight Time5~15 mins
Max. Flight Speed15 m/s
Obstacle AvoidanceSupport
Terrain Following FlightSupport
Flight ModeAuto / AB Point / Manual
Automatic FunctionsAuto Route Planning, Auto Altitude Hold, Auto Position Hold, Auto Return to Home, Breakpoint Resume Spraying
Spraying System
Water TankCapacity30 L
NozzlesNozzle TypeHigh-pressure Nozzles
Quantity8
Spray Width4~12 m
PumpQuantity1
Max. System Flow Rate8 L/min
Max. Work Efficiency
20 ha/h
GNSSGPS / BDS / GLONASS
Remote Control5.5-inch High Bright Screen


◉ Exploded view of drone

无人机分解图

◉ Factory show

  • factory01
  • factory02
  • factory03
  • factory04
  • factory05
  • factory06
  • factory07
  • factory08
